Why Navigation Instruments Matter in Modern Maritime Operations
In the age of digitalization and global trade, precision in marine navigation is more important than ever. Ships traverse congested ports, narrow straits, and vast oceans—often in adverse weather and low visibility. While modern vessels are equipped with cutting-edge navigation technology, their safe passage still depends on the competence of the crew and the accuracy of essential navigation instruments.
The International Maritime Organization (IMO) and International Hydrographic Organization (IHO) emphasize the use of both traditional and electronic navigation tools to ensure maritime safety and compliance. Whether you’re a deck cadet on your first bridge watch or a seasoned master mariner, understanding the tools of the trade—and how to use them effectively—is critical.
This article explores the top 10 navigation instruments used on ships, their functions, and their real-world applications on the bridge. From time-tested compasses to advanced digital systems, these instruments form the foundation of safe navigation at sea.
Key Developments Driving Change in Maritime Navigation
Navigation has evolved dramatically over the last three decades. Paper charts and manual plotting have largely given way to electronic navigation systems such as ECDIS and ARPA radar. The introduction of IMO’s E-Navigation strategy, mandatory ECDIS carriage requirements (per SOLAS), and automatic identification systems (AIS) have transformed bridge operations globally.
Still, international regulations require redundancy: when digital systems fail, manual tools like magnetic compasses and sextants must be ready for use. This hybrid approach ensures that seamanship remains both technically robust and resilient in emergencies.

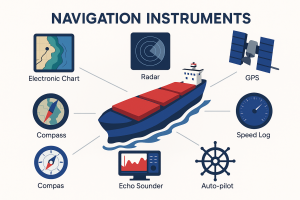

Top 10 Navigation Instruments Used on Ships
1. Gyrocompass
Unlike a magnetic compass, a gyrocompass aligns with true north, not magnetic north. It uses the Earth’s rotation and gyroscopic inertia to provide accurate directional readings, unaffected by magnetic fields.
Function: Supplies heading information to radar, ECDIS, autopilot, and steering systems.
SOLAS Mandate: All ships >150 GT on international voyages must carry a gyrocompass system.
Pro Tip: Always cross-check the gyro error using celestial or terrestrial bearings at least once per watch.
2. Magnetic Compass
The oldest and most reliable navigational tool, the magnetic compass remains essential for redundancy.
Use Case: Acts as a backup to the gyrocompass and functions independently of power sources.
Maintenance Tip: Adjust for deviation using deviation cards and check compass swings periodically.
📘 Reference: SOLAS Chapter V, Regulation 19.2.1.1 requires all vessels to carry a magnetic compass.
3. Radar (and ARPA Radar)
Radar (Radio Detection and Ranging) detects objects by sending out radio waves and analyzing their echoes.
ARPA (Automatic Radar Plotting Aid) adds the ability to:
-
Track target vessels
-
Predict Closest Point of Approach (CPA)
-
Assist in collision avoidance (COLREGs compliance)
Real-World Example: In fog-heavy regions like the English Channel, radar is the primary navigation aid to identify nearby traffic, landmasses, and buoys.
📘 IMO Performance Standard: Resolution MSC.192(79)
4. Electronic Chart Display and Information System (ECDIS)
ECDIS integrates GPS, AIS, radar, and gyro inputs onto electronic navigational charts (ENCs), providing real-time positioning and route planning.
Functionality:
-
Automatic chart corrections
-
Safety contour alarms
-
Integration with voyage data recorders (VDR)
SOLAS Requirement: Mandatory on most cargo ships >10,000 GT and all passenger vessels on international voyages.
🖥 Training Note: ECDIS use requires formal certification and type-specific training per STCW A-II/1.
5. Automatic Identification System (AIS)
AIS transmits a vessel’s identity, position, speed, course, and more to nearby ships and coastal stations.
Purpose:
-
Collision avoidance
-
Traffic monitoring
-
Port management and vessel tracking
Regulatory Note: Required by SOLAS Chapter V, Regulation 19 for ships >300 GT on international voyages.
Limitation: Subject to spoofing or loss of signal—must be used with radar and visual observation.
6. Global Positioning System (GPS)
GPS uses satellite signals to determine a vessel’s exact position, speed, and course over ground.
Advantages:
-
High accuracy in open sea
-
Continuous positioning data
-
Integration with ECDIS, radar, autopilot
Best Practice: Use differential GPS (DGPS) for enhanced accuracy near coasts or in port.
📘 Learn more: IMO GNSS Guidelines
7. Echo Sounder
An echo sounder measures the depth of water beneath the vessel by emitting sound pulses and timing their return from the seabed.
Use Cases:
-
Grounding prevention
-
Anchor deployment zones
-
Shallow water navigation
Real-World Insight: In the grounding of MV Wakashio, echo sounder alarms could have alerted the crew before impact—had they been monitored actively.
8. Speed Log (Doppler or Electromagnetic)
Logs measure a vessel’s speed through water (STW) or over ground (SOG). They are crucial for:
-
Collision avoidance
-
Fuel efficiency monitoring
-
Dead reckoning navigation
Types:
-
Doppler logs: Use sound waves and Doppler shift
-
Electromagnetic logs: Use the voltage induced in seawater
Note: Speed logs may deviate in currents—always compare with GPS-based speed over ground.
9. Sextant
A legacy instrument still taught and carried aboard for celestial navigation.
Function: Measures the angle between a celestial object (e.g., sun, star) and the horizon to calculate latitude and longitude.
Modern Value:
-
Emergency backup if GPS/ECDIS fail
-
Required knowledge for STCW certifications
🌍 Analogy: Think of a sextant as the analog compass of the sky—simple, reliable, and independent.
10. Chronometer (Marine Timekeeping Device)
A precise timekeeping instrument essential for celestial navigation and position fixing.
Why It Matters: Latitude can be determined with the sun’s altitude, but accurate longitude calculation requires exact time.
Regulatory Compliance: As per SOLAS, all ships must carry a chronometer or an equivalent device synchronized with UTC.
🕒 Tip: Chronometers must be corrected for error and logged regularly in the bridge logbook.
Case Study: Real-World Navigation—Blending Digital and Manual Tools
In 2020, during a blackout aboard a large container vessel in the Pacific, the crew lost access to ECDIS and radar. With stormy weather limiting visibility, the bridge team reverted to:
-
Paper charts
-
Sextant readings
-
Manual compass bearings
Despite the challenges, they safely navigated using traditional tools. This incident, later reported to the Nautical Institute, reinforced that reliance on digital systems must be balanced with proficiency in manual navigation.
Frequently Asked Questions (FAQ)
Q1: Are all these instruments required on every vessel?
A: Requirements vary by vessel type, tonnage, and voyage area. SOLAS Chapter V outlines the minimum mandatory instruments for compliance.
Q2: How often must navigation instruments be tested?
A: Most instruments are checked daily by the OOW and tested weekly as part of bridge equipment drills. Periodic calibration is required per the manufacturer or class rules.
Q3: What happens if ECDIS fails during a voyage?
A: The vessel must switch to paper charts or backup ECDIS systems. Officers must be proficient in both systems to maintain safe navigation.
Q4: Is sextant training still relevant?
A: Yes. Many maritime training programs still include celestial navigation, and some flag states require it for deck officer exams.
Q5: Can AIS data be trusted completely?
A: No. AIS can be spoofed, disabled, or suffer signal loss. It must be used alongside radar, visual observation, and sound signals.
Conclusion: Navigation Instruments—The Captain’s Toolkit for Safe Seas
Safe navigation is not just about steering a ship—it’s about knowing where you are, where you’re going, and what’s around you. From the analog elegance of the sextant to the integrated intelligence of ECDIS, each instrument on the bridge has a role in preventing collisions, groundings, and delays.
Understanding these tools—along with their limitations—empowers seafarers to make better decisions under pressure, meet regulatory standards, and ensure the safety of vessel, crew, and cargo.
