Ship Navigation Instrument: The Magnetic Compass with Pelorus and Bearing Repeater

Learn how the magnetic compass with pelorus remains vital in ship navigation. Explore its history, use, challenges, and modern role in maritime operations.”

On the open sea, where the horizon stretches endlessly and GPS signals are not always guaranteed, mariners have relied for centuries on one instrument above all: the magnetic compass. Paired with a pelorus or bearing repeater, it has guided countless ships through storms, wars, and voyages of discovery. Even in today’s era of satellite navigation and electronic chart systems, the marine compass continues to be a mandatory navigational tool under the International Maritime Organization (IMO) regulations.

This article dives into the fascinating world of the ship’s magnetic compass, its bearing attachments such as the pelorus, and their enduring role in safe maritime navigation. We’ll explore how it works, why it remains relevant, its challenges, and what the future holds for this iconic instrument.

Why the Magnetic Compass Still Matters in Maritime Operations

Despite the rise of GPS, ECDIS (Electronic Chart Display and Information System), and radar, the magnetic compass remains compulsory on ships as per SOLAS Chapter V, Regulation 19. It provides a non-electronic, independent reference of direction, unaffected by satellite failure or cyber risks. According to the International Chamber of Shipping (ICS), around 90% of world trade still relies on ships, and every voyage must adhere to navigational safety standards. In this context, the magnetic compass ensures that a ship’s crew has a reliable, manual backup for steering and bearings, especially in emergencies.

In an era dominated by digital precision from Global Navigation Satellite Systems (GNSS), Gyrocompasses, and Integrated Bridge Systems (IBS), the magnetic compass stands as a timeless and critical piece of safety equipment. Its mandated presence on the bridge is not a relic of a bygone era but a fundamental principle of modern navigational risk management.

1. Regulatory Mandate: The SOLAS Requirement

The International Convention for the Safety of Life at Sea (SOLAS), Chapter V, Regulation 19, explicitly requires all ships to be fitted with a properly adjusted standard magnetic compass or other means to independently determine the vessel’s heading and display the reading to the helmsman at the main steering position.

This is not a suggestion but a legal imperative. Classification societies and Port State Control (PSC) inspectors verify its presence and condition. The rationale is rooted in the principle of redundancy: no single point of failure should compromise the vessel’s ability to determine its heading.

2. The Ultimate Backup: Independence from Failure

The primary value of the magnetic compass lies in its profound simplicity and independence. It requires no electrical power, no satellite signals, and no complex software to function. It is a self-contained system relying solely on the Earth’s magnetic field. This makes it immune to:

  • GNSS Jamming and Spoofing: Increasingly common threats where malicious actors block or provide false GPS signals, which can corrupt all dependent systems like ECDIS and radar.
  • Power Failure: A total blackout will extinguish all electronic navigation equipment, but the magnetic compass remains instantly available.
  • Systemic Cascading Failures: A gyrocompass failure or error can propagate inaccurately to every connected system on the bridge (radar, AIS, ECDIS, autopilot). The magnetic compass provides an independent check.
  • Cyber-Attacks: As bridge systems become more networked, they become vulnerable to cyber incidents. A non-digital, analog instrument is inherently secure.

3. Practical Applications in Daily Operations and Emergencies

For deck officers, the compass is not just a backup; it is an active tool:

  • Gyrocompass Verification: The gyro compass is the primary heading source, but it can drift or fail. Officers are trained to regularly check the gyro against the magnetic compass (accounting for the calculated deviation) to ensure accuracy.
  • Emergency Steering: In the event of a failure of the main steering system, the ship will often transition to emergency steering, which is typically a manual, non-electronic system. The magnetic compass is the primary heading indicator for the helmsman in this scenario.

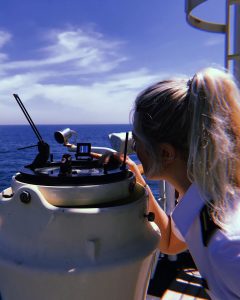

  • Taking Visual Bearings: While peloruses (bearing circles) are often connected to the gyro repeater, they can also be aligned with the magnetic compass to take relative bearings of objects or other vessels, providing a crude but effective independent fix or collision assessment.
  • Grounding and Recovery: If a vessel loses all power and navigational electronics, the first priority is to establish situational awareness. The magnetic compass allows the bridge team to immediately determine the vessel’s heading, which is critical for managing drift, initiating anchor procedures, or transmitting accurate distress signals.

4. A Tool for Learning and Seamanship

For cadets, learning about the magnetic compass is a fundamental part of their education. Understanding:

  • Principles: Magnetism, variation, and deviation.
  • Adjustment: The process of “swinging the compass” to create a deviation card.
  • Calculation: Applying variation and deviation to convert a compass heading to a true heading (and vice versa).

This process instills a deep understanding of the principles of navigation that underpin even the most advanced electronic systems. An officer who understands magnetic compass error is better equipped to troubleshoot anomalies in electronic systems.

The International Chamber of Shipping (ICS) states that approximately 90% of world trade is transported by sea. The magnetic compass, on every one of those ships, is a silent guardian of that global economy. It represents the maritime industry’s core safety philosophy: trust, but verify. We trust our advanced technology, but we always verify with independent means. It is the ultimate embodiment of the precautionary principle enshrined in COLREGs Rule 2 and ensures that even in the darkest hour, a mariner is never truly lost.

–

Key Components and Technologies

The Marine Magnetic Compass

The marine compass works on a simple principle: a magnetized needle aligns with the Earth’s magnetic field, pointing towards magnetic north. On ships, the compass is mounted inside a binnacle, often fitted with compensating spheres (Kelvin’s balls) and correctors to minimize deviation caused by the ship’s metal structure.

The Pelorus

A pelorus is essentially a sighting device without a magnetic needle. Mounted over the compass, it allows navigators to take bearings of celestial bodies, landmarks, or other vessels. The reading helps determine the ship’s position or to cross-check its heading.

Bearing Repeater / Azimuth Circle

Modern vessels often use a bearing repeater connected to a gyrocompass. However, for the magnetic compass, the azimuth circle enables mariners to take precise bearings of objects relative to the compass card.

Integration with Modern Systems

Many ships combine their magnetic compass with gyrocompass and autopilot systems. Yet, the magnetic compass remains the ultimate fallback — always on, always reliable, and requiring no electricity.

–

Challenges and Practical Solutions

Compass Deviation

Steel hulls, cargo, and onboard electronics can distort the compass reading, creating errors known as deviation. The solution is: Regular compass adjustment by certified compass adjusters, as required under IMO and national regulations.

Magnetic Variation

The difference between true north and magnetic north, called variation, changes depending on location and time. Mariners must correct for this using nautical charts issued by hydrographic offices.

Human Error in Bearings

Incorrect alignment of the pelorus or poor sighting can cause errors. The solution is: Training under STCW Convention (Standards of Training, Certification and Watchkeeping for Seafarers) ensures navigators are skilled in taking and recording bearings.

–

Case Studies and Real-World Applications

Traditional Navigation in Polar Waters

In the Arctic and Antarctic, compasses become unreliable due to proximity to the magnetic poles. Mariners rely on gyrocompasses and GPS, but the magnetic compass remains required as a reference, highlighting its regulatory importance even in extreme conditions.

Maritime Incidents Linked to Compass Errors

According to Marine Accident Investigation Branch (MAIB) reports, several groundings and collisions in coastal waters have been partly attributed to poor compass use or failure to cross-check bearings. This shows the human factor remains critical.

Training at Maritime Academies

Institutions like the Massachusetts Maritime Academy and World Maritime University still emphasize hands-on compass training. Students learn to take azimuths, adjust for deviation, and plot fixes — proving the compass is not just history, but a living tool in education.

–

Future Outlook: Will the Compass Survive the Digital Era?

The maritime industry is moving towards digitalization — smart ships, autonomous navigation, and AI-driven voyage optimization. Yet, experts including those at Lloyd’s Register argue that the magnetic compass will never be obsolete. It is simple, robust, and provides independence from cyber threats.

As cybersecurity becomes a growing concern in navigation (highlighted by IMO’s cyber risk management guidelines), the humble compass serves as a safeguard against digital disruption.

–

Frequently Asked Questions

1. What is the difference between a pelorus and a compass?
A compass shows direction relative to magnetic north, while a pelorus is a sighting device used to take bearings without its own magnetic element.

2. Why do ships still need a magnetic compass if they have GPS?
Because IMO requires redundancy. GPS can fail due to jamming, spoofing, or technical issues, while a compass always works.

3. How often should a ship’s compass be adjusted?
SOLAS requires adjustment after structural changes, damage, or at least annually by a certified compass adjuster.

4. What is compass deviation?
Deviation is the error caused by magnetic interference from the ship itself. It is corrected using compensating devices and adjustment.

5. Can magnetic compasses be used near the poles?
They become unreliable near the magnetic poles, but are still carried as backup instruments.

6. What is the role of the STCW Convention regarding compass use?
It mandates training in navigation, including compass use, for all officers in charge of a navigational watch.

–

Conclusion

The magnetic compass with pelorus and bearing repeater is more than just a relic of maritime history. It is a vital navigation instrument, combining tradition with ongoing relevance in a digital era. By providing a fail-safe backup, ensuring compliance with IMO and SOLAS regulations, and serving as a foundation for seafarer training, it anchors the maritime world to a timeless principle: simplicity ensures safety.

Whether guiding a massive container ship across the Pacific or helping cadets learn the art of navigation, the compass remains the sailor’s oldest and most trusted friend.
