Maintenance of the Fuel Oil System in Marine Diesel Engine Generators: An Operational Guide

Learn how to maintain the fuel oil system of marine diesel engine generators with this comprehensive guide. Covers daily inspections, pressure adjustments, fuel strainer cleaning, pump checks, and global best practices.

Why Fuel Oil System Maintenance Is Critical for Maritime Operations

Onboard a ship, the marine diesel engine generator is the beating heart that keeps the vessel powered — from navigation systems and lighting to pumps and communication tools. And at the very core of this engine’s performance is its fuel oil system.

Without consistent maintenance, even a minor issue in the fuel oil system can lead to poor engine performance, reduced efficiency, or complete failure. This could mean delayed operations, increased fuel consumption, or even a ship stuck in the middle of the sea.

For marine engineers, students in maritime academies, and engine cadets preparing for life at sea, mastering fuel oil system maintenance is not just a technical task — it’s a matter of professional responsibility and maritime safety.

Understanding the Fuel Oil System: A Brief Overview

Before diving into the maintenance procedures, it’s important to understand what makes up a typical marine diesel generator’s fuel oil system. The system includes:

  • Fuel oil supply pump

  • Fuel oil heaters and viscosity controllers

  • Fuel filters and strainers

  • Fuel injection pumps and racks

  • Return fuel lines and regulating valves

Most marine vessels today run on Heavy Fuel Oil (HFO) or Marine Diesel Oil (MDO), both of which require heating and filtering before injection.

Daily Maintenance: Ensuring Reliable Operation at Sea

Monitoring Fuel Pressure and Temperature

While the engine is running, check that the fuel oil pressure and temperature are within the manufacturer’s specified values. Variations from the norm may indicate:

  • A clogged fuel strainer

  • Improper regulating valve settings

  • Viscosity controller malfunction

For instance, a sudden drop in pressure might result in fuel starvation to the engine, potentially causing misfiring or power loss.

For more details about this marine engine ⚙️🌊, watch the short video below on our YouTube channel ▶️.

03 Maintenance of Fuel Oil System of Marine Diesel Engine Generators

Fuel Strainer Cleaning: Step-by-Step Procedure

Fuel oil strainers remove solid impurities from the fuel to protect the fuel injection system. Vessels often use dual strainers (right and left units) so one can be cleaned while the other is in use.

Disassembly and Cleaning Procedure:

  1. Switch the active side: Use the changeover handle to isolate the strainer to be cleaned.

  2. Open the air bleed valve and then the drain valve to remove residual fuel.

  3. Remove cover bolts and the element.

  4. Soak the element in light oil or cleaning fluid, and clean with a nylon brush (metal brushes can damage the filter wire).

  5. Blow compressed air (0.3–0.5 MPa) through the inside of the filter.

  6. Use a torch or light to inspect the filter from the inside. Look for:

    • Dirt or foreign matter

    • Scratches or corrosion

    • Broken wire mesh

  7. Reassemble the unit in reverse order.

  8. Return the handle to the “both sides in use” position.

  9. Bleed air from the strainer to complete the process.

Note: Always wear PPE when handling hot fuel systems. Safety gloves, face shields, and flame-resistant coveralls are essential.

–

Adjusting Fuel Oil Pressure and Viscosity

Fuel pressure in marine engines is usually controlled through manual regulating valves on the return line. Before making adjustments:

  • Understand the fuel piping system on your vessel thoroughly.

  • Identify the return line and locate the regulating valve.

  • Make adjustments slowly and record each setting to monitor system response.

Viscosity Controller Settings:

Viscosity — the measure of fuel thickness — affects combustion quality. If the fuel is too thick or too thin, it won’t burn efficiently.

Modern ships use automated viscosity controllers, but manual settings must be checked:

  • Set the controller so that the fuel temperature at the engine inlet matches manufacturer specs (usually 130–150°C for HFO).

  • Monitor temperature sensors regularly. Faulty sensors can send incorrect signals to heaters.

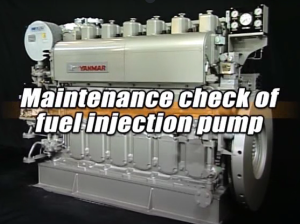

Fuel Injection Pump Inspection (Every 300–500 Running Hours)

One of the most critical parts of the fuel oil system is the fuel injection pump. Regular checks ensure consistent combustion and power output.

What to Inspect:

  • Rack Movement: Remove the pump cover and check for free movement. A stuck rack leads to uneven cylinder firing.

  • Graduation Marks: Ensure the position is even across all cylinders. Big differences suggest faulty linkages.

  • Pinion Lubrication (for HFO): Check that lubrication oil is reaching the pinion sleeve.

Checking Oil Drip Rate:

  1. Remove the plug screw on the injection pump’s side.

  2. Observe the drip rate: One drop every 10 to 12 seconds is standard.

  3. If oiling is insufficient:

    • Remove the cap nut on the regulating valve.

    • Loosen the lock nut.

    • Adjust the flow screw gradually until the correct drip rate is achieved.

    • Tighten the lock nut and cap nut firmly.

Proper lubrication reduces wear on precision parts and prolongs the life of the injection system.

–

Real-World Example: A Case of Fuel Starvation at Sea

In 2022, a container ship suffered a partial blackout in the Malacca Strait. The issue? A poorly maintained fuel oil strainer caused blockage in the injection line. When engineers inspected it, the strainer was clogged with sludge and asphaltic residue from degraded HFO.

The delay cost the company nearly USD 45,000 in demurrage and disrupted supply chains.

Lessons learned:

  • Don’t delay routine checks — even if everything “looks fine.”

  • Always follow procedures during changeover and cleaning.

  • Never ignore abnormal pressure or temperature readings.

–

Challenges and Recent Solutions in Fuel System Maintenance

Challenge: Poor Fuel Quality

Global fuel quality varies, especially post-IMO 2020 regulations limiting sulfur content. Many ships now operate on Very Low Sulphur Fuel Oil (VLSFO), which has different stability and compatibility profiles.

Solution: Use fuel compatibility testing kits onboard and conduct frequent filter checks.

Challenge: Manual Adjustments Lead to Human Error

Adjusting regulating valves and viscosity controllers manually can introduce errors.

Solution: Adoption of digital control units, flow sensors, and alarm systems now allows real-time monitoring and automatic adjustment.

Challenge: Sludge Accumulation

Even with good quality fuel, sludge from oxidation and polymerization can clog strainers and injectors.

Solution: Install automated self-cleaning filters and use fuel additives where recommended by the engine maker.

 –

Future Outlook: Automation and Condition-Based Maintenance

The future of fuel oil system maintenance lies in data-driven automation and predictive diagnostics.

Companies like Wärtsilä, MAN Energy Solutions, and Alfa Laval are developing:

  • FuelFlex systems to handle multiple fuel types

  • Smart strainers that signal when cleaning is needed

  • Remote monitoring platforms integrated with Inmarsat for real-time alerts

According to DNV and IACS, these innovations can reduce maintenance hours by 30% and prevent 70% of unscheduled failures.

–

FAQ: Common Questions About Fuel Oil System Maintenance

1. How often should the fuel strainer be cleaned?

Check daily. Clean at least once a week or immediately if pressure drops are noted.

2. What causes irregular fuel pressure?

Clogged strainers, faulty regulating valves, or air in the system are common causes.

3. How do I know if the viscosity controller is working?

Monitor the fuel temperature at the engine inlet. If it’s outside normal range, the controller may need recalibration.

4. Is manual cleaning better than automated filters?

Automated systems are efficient but must be checked regularly. Manual cleaning ensures thorough inspection.

5. Can air in the fuel line damage the engine?

Yes. Air pockets cause misfiring and can damage injectors due to uneven combustion.

6. What’s the risk of over-lubricating the fuel pump?

Excess oil can leak into the combustion chamber or dilute the fuel, reducing efficiency.

 Conclusion

Maintaining the fuel oil system of marine diesel generators is not just about following procedures — it’s about preventing failures before they happen. A clean strainer, accurate pressure settings, and well-lubricated fuel injectors can mean the difference between smooth sailing and costly delays.

For cadets, engineers, and superintendents, mastering these techniques is a core competency in modern maritime operations. As automation continues to evolve, the human element — knowledge, discipline, and inspection — remains irreplaceable.
