Basics of Marine Diesel Engine Generators: A Practical Guide

In every seagoing vessel, there are marine diesel engine generators. These machines are the lifeline for onboard electrical power, supporting everything from navigation to cargo operations. Whether you’re an aspiring marine engineer, a seasoned officer, or simply an enthusiast, understanding the layout and function of a marine diesel generator is crucial for safety, efficiency, and compliance with international regulations.

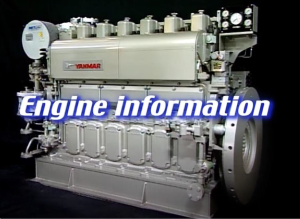

This guide is based on a detailed educational video explaining the layout and core components of a common marine diesel engine (6E18L-type engine). For a Yanmar marine diesel engine, the model 6E18L typically stands for:

  • 6: Number of cylinders (6 cylinders in-line)
  • E: Engine series or family (E-series)
  • 18: Bore diameter in centimeters (180 mm)
  • L: Long stroke (280 mm in this case, indicating a slower-speed, high-torque design).

This aligns with Yanmar’s naming convention, where the bore and stroke reflect the engine’s size and performance characteristics. The L often denotes a longer stroke for durability and lower RPM operation (e.g., 720 RPM).

However, we will go beyond the basics — offering deeper technical insights, real-world maintenance tips, safety precautions, and recent technological trends.

Marine Diesel Generator Specifications and Layout

Rated Speeds: 720 RPM and 900 RPM

Marine diesel generators typically operate at one of two rated speeds — 720 RPM or 900 RPM. These speeds are chosen to match the frequency of the onboard electrical system (usually 60Hz or 50Hz, respectively). The RPM impacts engine size, wear rates, and maintenance intervals. The lower speed (720 RPM) is often used in vessels requiring more durability and longer operational life.

The marine engines discussed in this guide — 6E18L — have the following key characteristics: 6 cylinders arranged in-line, Bore x Stroke: 180 mm x 280 mm, Firing Order: Specific to the engine design, critical for balanced power output, & Rotation: Counterclockwise when viewed from the flywheel side.

These specifications are typical for auxiliary diesel engines on medium-sized vessels such as general cargo ships, offshore support vessels, and small tankers.

For more details about this marine engine ⚙️🌊, watch the short video below on our YouTube channel ▶️. Don’t forget to subscribe 🔔

 Marine Diesel Engine Generator – Basic Descriptions



Detailed Component Layout: Engine Orientation and Key Devices

Understanding the orientation and layout of a diesel engine helps in both routine maintenance and emergency troubleshooting.

View from Flywheel Side

When standing on the flywheel side, here’s how the engine layout appears:

Operation Side (Left Side from Flywheel View):

  • Governor: Regulates engine speed by controlling fuel injection.

  • Air Motor: Used for starting the engine using compressed air.

  • Fuel Strainer & Regulating Valve: Ensure clean and pressurized fuel supply.

  • Turbocharger: Boosts air intake using exhaust gases to improve power and efficiency.

  • Air Cooler (Intercooler): Reduces air temperature before it enters the cylinders.

  • Cooling Water Thermostatic Valve: Maintains optimal cooling temperature.

Anti-Operation Side (Right Side from Flywheel View):

  • Lube Oil Pump: Circulates oil to reduce friction and wear.

  • Lube Oil Cooler: Controls oil temperature to maintain viscosity.

  • Automatic Backwashing Strainer: Self-cleans the lubrication oil by removing debris.

  • Cooling Water Pump: Circulates seawater or freshwater in the jacket cooling system.

Learning the spatial arrangement of these parts is essential for efficient and safe engine room operations.

Safety Measures and Protective Gear

Working with marine diesel engines involves numerous hazards — including high temperatures, rotating machinery, oil leaks, and electrical components. Thus, safety procedures are not optional — they are mandatory and life-saving.

Personal Protective Equipment (PPE) Checklist:

  • Helmet

  • Safety glasses or goggles

  • Mask (especially for dusty or oily environments)

  • Gloves (oil-resistant and heat-resistant)

  • Safety belt or harness (for high or enclosed areas)

  • Steel-toe shoes or foot protectors

  • Flame-resistant clothing (never wear oiled garments — high fire risk)

Follow onboard safety instructions and refer to the engine safety label before starting any maintenance task. Remember, incidents often occur not due to technical errors, but due to complacency or poor planning.

Real-World Example: Maintenance on a 6E18L Engine

Let’s consider an actual case on board a 10,000 DWT general cargo vessel powered by a 6E18L marine generator.

During a scheduled inspection, engineers noted overheating in cylinder #4. After investigating, they found the cooling water thermostat was stuck closed, preventing proper circulation.

Steps taken:

  1. Engine was safely stopped and isolated.

  2. Cooling system was drained.

  3. Thermostat valve was removed and replaced.

  4. System was flushed and refilled.

  5. Engine restarted and monitored for temperature trends.

This case underlines the importance of knowing the exact position of components and wearing correct PPE to perform maintenance safely and efficiently.

Advances in Marine Diesel Engine Technology (Last 3–5 Years)

Modern marine diesel generators are evolving quickly to meet global demands for cleaner, smarter, and safer operation.

Recent Innovations:

  • Digital Twins: Real-time simulation models help predict failures before they occur.

  • IMO Tier III Compliance: Engines are now fitted with SCR (Selective Catalytic Reduction) systems to reduce NOx emissions.

  • Condition-Based Maintenance (CBM): Uses sensors and IoT to monitor wear in real-time (e.g., MAN Energy Solutions, Wärtsilä).

  • Remote Monitoring: Shipowners can track engine health remotely via satellite connectivity (Inmarsat, Iridium).

These trends are driven by IMO regulations, IACS recommendations, and Class Society approvals (such as DNV and Lloyd’s Register).

FAQ: Common Questions about Marine Diesel Generators

1. What is the main function of a marine diesel generator?

It generates electrical power for ship systems such as lighting, HVAC, pumps, and control systems.

2. What does 6E18L mean in engine classification?

  • 6 = Number of cylinders
  • E = Engine series/type
  • 18 = Bore diameter in cm (180 mm)
  • L = Long stroke engine

3. Why is the flywheel side used for orientation?

It offers a fixed reference point to describe all engine components and layout.

4. How do you identify cylinder numbers?

From the flywheel side forward — cylinder #1 is closest to the flywheel.

5. How often should routine maintenance be done?

Depends on running hours and OEM recommendations. Typically every 250–500 hours for filters and oil checks; 2000–4000 hours for injector and valve overhauls.

6. What is counterclockwise rotation, and why is it important?

When viewed from the flywheel side, the crankshaft turns counterclockwise. This affects ignition timing, gear alignment, and system design.

7. Are marine diesel engines environmentally friendly?

Older engines are not, but modern units are increasingly eco-friendly with low-emission technology in compliance with IMO Tier II and Tier III.

 Conclusion

Understanding the layout and function of marine diesel engine generators is not just about passing an exam — it’s about being ready and competent in real-world situations.

From RPM ratings to cooling systems, from personal safety to global regulations, the ability to operate and maintain these systems effectively can prevent breakdowns, save lives, and ensure compliance.

As shipping continues to modernize, engineers and officers must keep pace with new technologies while never forgetting the fundamental principles of safety, precision, and responsibility.
