Discover how ECDIS fuses Radar, AIS, and GPS data into a single navigational picture. This guide explains integration principles, practical benefits, and future trends for enhanced maritime safety and efficiency.

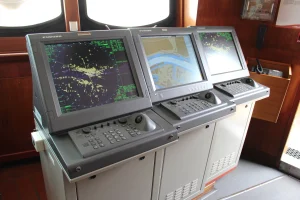

Walk onto the bridge of a modern vessel, and you are greeted not by a single instrument, but by a symphony of interconnected systems. The radar screen paints echoes of nearby objects, the AIS display lists vessel names and courses, and the GPS receiver provides a blinking dot of precise latitude and longitude. For decades, mariners had to mentally correlate this disparate information, a task requiring immense skill and concentration. Today, the Electronic Chart Display and Information System (ECDIS) acts as the conductor of this symphony. It is the central hub where data from Radar, Automatic Identification System (AIS), and Global Positioning System (GPS) converges, transforming isolated data streams into a single, coherent, and actionable navigational picture. This integration is not merely a convenience; it is a fundamental advancement in maritime safety and operational efficiency. Understanding how ECDIS fuses these technologies—their strengths, their limitations, and the practicalities of their use—is essential knowledge for every navigation officer committed to mastering the modern bridge.

Why System Integration is the Cornerstone of Modern Watchkeeping

The International Maritime Organization (IMO) mandates the carriage of ECDIS, Radar, AIS, and GNSS receivers not as isolated tools, but as components of an Integrated Navigation System (INS). The philosophy behind this is clear: redundancy and correlation enhance safety. A single source of information is vulnerable to error or failure. By integrating multiple, independent sensors, ECDIS allows for cross-verification. The vessel’s GPS position can be checked against a radar range and bearing fix. An AIS target’s reported course can be compared to its radar track. This process of continuous data validation is the true power of integration. It moves the watchkeeper from a role of passive data collector to an active situation manager, equipped with a unified display that highlights potential conflicts, such as a radar echo without an AIS signal (a potential fishing vessel or small craft) or an AIS target on a collision course. In congested waterways, poor visibility, or complex pilotage situations, this integrated picture is not just helpful; it is a critical layer of defense against accidents, directly supporting the principles of Colregs and effective Bridge Resource Management (BRM).

The Foundational Layer: GPS/GNSS Integration and Position Integrity

At the very core of the ECDIS display is the vessel’s own position, almost universally supplied by a Global Navigation Satellite System (GNSS) receiver, with GPS being the most widely used. The integration here is fundamental: ECDIS takes the continuous stream of latitude, longitude, speed over ground (SOG), and course over ground (COG) from the GNSS receiver and plots it directly onto the Electronic Navigational Chart (ENC).

However, sophisticated integration goes beyond simple plotting. Modern ECDIS units are designed to manage multiple GNSS position inputs simultaneously—typically from two independent receivers. They perform crucial integrity monitoring, checking for unreasonable jumps in position, loss of signal, or discrepancies between the primary and secondary sources. When configured correctly, the system can provide an early warning of potential GNSS signal degradation, spoofing, or jamming. This is vital because every other aspect of the integrated picture—the placement of AIS targets, the alignment of the radar overlay—hinges on the accuracy of this foundational positional data. A fault here corrupts the entire display. Therefore, the officer’s first check must always be to verify the selected position source and its stated accuracy on the ECDIS status display.

Radar Integration: The Critical Overlay of “Eyes” and “Chart”

Radar provides something that GPS and AIS cannot: an independent, sensor-based picture of the physical world. It detects echoes from ships, landmasses, buoys, and weather formations regardless of whether they are transmitting data or are charted. Integrating this raw sensor data with the chart is one of ECDIS’s most powerful functions.

This is achieved primarily through the Radar Overlay function. When activated, a semi-transparent radar image is superimposed directly onto the ECDIS chart display. For this to be meaningful, the radar image must be accurately aligned with the chart. This requires two key steps:

1. Position Alignment: Using the vessel’s common GNSS position.

2. Heading Alignment: Using a shared input from the vessel’s gyrocompass.

When correctly calibrated, the overlay allows the officer to see, for example, that a radar echo lines up precisely with a charted buoy, confirming both the buoy’s position and the radar’s accuracy. More importantly, it reveals discrepancies. A radar echo of a coastline that does not match the charted coastline could indicate a chart error, a misalignment of the radar, or a significant set and drift affecting the vessel’s position. This immediate visual comparison is an invaluable tool for verifying both the chart data and the sensor inputs.

Beyond the simple overlay, advanced target tracking capabilities, such as Automatic Radar Plotting Aid (ARPA) or Automatic Tracking Aid (ATA), can be integrated. Vectors and past tracks of radar targets can be displayed on the ECDIS screen, providing a clear, chart-referenced view of the traffic situation. This fused view helps quickly assess collision risks relative to navigational constraints like channels or shoal waters.

AIS Integration: Adding Intelligence and Identity to the Picture

If radar shows the physical world, AIS adds an informational layer to it. AIS is a transponder system that broadcasts a vessel’s dynamic data (position, COG, SOG, heading) and static data (name, call sign, dimensions, voyage details). ECDIS receives this data stream and displays each AIS target as a symbol on the chart.

The integration transforms anonymous radar blips into identified vessels. The watchkeeper can instantly see a target’s name, click on it to view its destination and cargo, and clearly observe its calculated Closest Point of Approach (CPA) and Time to CPA (TCPA). ECDIS can be configured to trigger alarms based on these CPA/TCPA values, providing proactive warnings of potential collision risks. This is particularly useful for early assessment of traffic in open water.

However, the most critical safety function arises from the synthesis of AIS and radar data. ECDIS can perform a process called data fusion, correlating radar tracks with AIS targets. When a radar track and an AIS report are deemed to be from the same object, the system displays a single, fused symbol. This reduces screen clutter. More importantly, it highlights uncorrelated targets: a radar echo with no AIS signal (e.g., a warship, a small fishing boat, or an uncharted object) or, conversely, an AIS symbol with no radar track (which could indicate a faulty transponder or a plotting error). These uncorrelated targets require the officer’s immediate and heightened attention, as they represent the unknown elements in the navigational environment.

Practical Applications and Operational Workflow

The true value of integration is realized in the daily workflow of passage planning and watchkeeping. During voyage planning, the officer uses the ECDIS to set safety contours and no-go areas. When the radar overlay is active during the voyage, the officer can immediately see if any radar echoes infringe upon these safety zones, prompting earlier investigation.

In a collision avoidance scenario, the integrated display streamlines decision-making. Instead of looking at a radar screen to assess CPA, then at an AIS list for identity, and then at the chart for available sea room, the officer sees it all in one place. They can assess if a maneuver to starboard is safe by checking the chart for nearby shallow water while simultaneously watching how the AIS targets’ vectors respond. This unified context supports faster, more informed decisions that comply with Colregs.

A practical example is navigating a traffic separation scheme. The ECDIS displays the charted lanes. AIS targets show the flow and identity of other vessels in the lanes. The radar overlay confirms the physical presence of all targets, including non-AIS compliant ones, and helps verify the vessel’s own track along the lane’s centerline. This multi-source verification is the essence of modern situational awareness.

Challenges, Limitations, and Vital Cautions

While powerful, integrated navigation is not infallible, and over-reliance on it is a major risk. Officers must be acutely aware of its limitations:

• The “Single-Point-of-Failure” Risk: ECDIS is the central hub. A failure in its computer, software, or power supply can result in the loss of the integrated picture, even if the individual sensors (radar, AIS, GPS) remain functional.

• Sensor Errors and Misalignment: A misaligned radar or a faulty GNSS antenna will feed incorrect data into the ECDIS, corrupting the entire display. The famous grounding of the MV Ever Given in the Suez Canal in 2021, while complex, involved reported issues with high winds and potential sensor/positioning discrepancies during the transit. Regular system checks and cross-verification with raw data from individual stand-alone displays are essential.

• Data Overload and Complacency: A cluttered ECDIS screen with excessive AIS targets, radar echoes, and chart data can overwhelm the watchkeeper. Furthermore, the polished, integrated display can foster a dangerous “watch-the-screen” mentality, leading to a neglect of the most primary sensor: the human eye looking out the window. The International Chamber of Shipping (ICS) Bridge Procedures Guide consistently emphasizes that the integrated picture is an aid to navigation, not a replacement for visual and auditory lookout.

• Latency and Data Integrity: AIS data is not real-time; there is a slight transmission delay. Radar processing also involves a small lag. In fast-evolving situations, these latencies can be significant. The officer must understand that the display is a near-real-time representation, not an instantaneous one.

The Future: S-100, IoT, and the Connected Bridge

The integration we see today is evolving rapidly. The new IHO S-100 data framework will enable even richer fusion. Future S-100 based ECDIS will natively integrate new data types, such as:

• S-102 (High-Density Bathymetry): Providing a detailed 3D model of the seafloor directly on the navigation display.

• S-111 (Surface Currents): Overlaying real-time current vectors, allowing for more accurate grounding and drift risk assessment.

• S-124 (Navigational Warnings): Displaying dynamic, machine-readable warning areas that automatically alert the officer.

Furthermore, the rise of the maritime Internet of Things (IoT) and Low Earth Orbit (LEO) satellite connectivity will enable shore-side integration. Fleet operation centers could monitor the integrated ECDIS picture in near-real-time, offering support and alerts. Vessels could share filtered navigational data with each other directly, creating a collaborative, networked awareness that extends beyond the horizon of one’s own radar. The future integrated bridge will be less about displaying internal sensor data and more about participating in a shared maritime information environment.

FAQ: ECDIS Integration in Practice

1. If my ECDIS is displaying perfect AIS and radar data, can I reduce my visual lookout?
Absolutely not. This is a critical misunderstanding. ECDIS integration is an aid, not a replacement. Regulation 5 of the COLREGs (“Look-out”) mandates a proper lookout by sight and hearing. Your eyes can see a small rowboat, a floating container, or a vessel with failed navigation lights long before radar or AIS detects it. The integrated display must be used in conjunction with, not instead of, a traditional lookout.

2. My radar overlay doesn’t perfectly match the charted coastline. What should I do?
First, do not assume the chart is wrong. Check the alignment and calibration of your radar system. Verify the position and heading sources are common and correct for both ECDIS and radar. If a slight, consistent offset remains, it could be a minor radar distortion or a very old survey on the chart. Use this discrepancy as a reminder to navigate with extra caution, using other means (visual bearings, depth soundings) to confirm your position. Never ignore a persistent, unexplained offset.

3. Why does my ECDIS sometimes show two symbols for the same ship—one from AIS and one from radar tracking?
This indicates the system has not successfully fused the two data sources. This can happen due to slight positional differences, latency, or system settings. An unfused target requires your attention. You must manually correlate the two symbols to confirm they are the same object. This situation highlights why monitoring raw radar on its own display is still a vital skill.

4. What is the most important cross-check to perform regularly on an integrated bridge?
The most fundamental check is to verify your vessel’s GNSS position using an independent method. This can be taking a visual bearing of a charted object and plotting a fix on a paper chart, or using radar ranges and bearings to fixed, charted points. This practice validates the foundation upon which the entire integrated display is built.

5. How does integrated navigation help with cybersecurity risks?
Ironically, while integration creates a more efficient bridge, it can increase cyber risk by connecting more systems. A cyber intrusion could theoretically corrupt data feeds. The defense is network segmentation—keeping the critical navigation network (ECDIS, radar, GNSS) physically or logically separate from the crew welfare and administrative networks. Regular system updates and crew cyber awareness training are now essential components of safe integrated navigation.

6. Will future integration make traditional radar and chart plotting skills obsolete?
No, these skills will become more valuable, not less. They are the “fallback” competencies required when integrated systems fail or provide conflicting data. An officer who understands the principles of radar interpretation and manual plotting is far better equipped to troubleshoot an integrated system error than one who only knows how to operate the ECDIS interface. These are enduring, fundamental maritime skills.

7. Who is responsible for ensuring the integrated systems are properly set up and aligned?
The Master holds ultimate responsibility for the safe navigation of the vessel. However, the Officer of the Watch (OOW) is responsible for verifying the operational status and alignment of all systems at the start of the watch and at regular intervals. This includes checking radar overlay alignment, verifying the correct AIS and GNSS data is being received, and ensuring all alarms are set appropriately. This must be documented in the deck logbook.

Conclusion: The Integrated Officer for the Integrated Bridge

The modern bridge, with ECDIS at its heart, is a testament to technological integration. Yet, the most important integration is not between wires and processors, but within the mind of the navigation officer. The goal is to synthesize the data on the screen with the view from the window, the sound from the VHF, and the foundational knowledge of seamanship. ECDIS with Radar, AIS, and GPS integration provides a tool of immense power—a tool for validating information, uncovering discrepancies, and building a comprehensive situational picture. But it remains a tool. Its effective use demands a professional who understands its underlying principles, respects its limitations, and never relinquishes the core duties of watchkeeping. As we move towards an even more connected and data-rich maritime future, cultivate not just the ability to operate the integrated system, but the wisdom to question it, the skill to verify it, and the vigilance to look beyond it. Safe navigation will always depend on this human integration.

References

1. International Maritime Organization (IMO). (2024). Revised Performance Standards for Integrated Navigation Systems (INS). MSC.252(83). https://www.imo.org/en/OurWork/Safety/Pages/INS.aspx

2. International Hydrographic Organization (IHO). (2023). *S-100: The Universal Hydrographic Data Model*. https://iho.int/en/s-100-universal-hydrographic-data-model

3. International Chamber of Shipping (ICS). (2022). Bridge Procedures Guide, 6th Edition. https://www.ics-shipping.org/publication/bridge-procedures-guide-6th-edition-2022/

4. European Maritime Safety Agency (EMSA). (2023). Annual Report on Maritime Safety. https://www.emsa.europa.eu/publications/reports.html

5. National Oceanic and Atmospheric Administration (NOAA). (2024). What is the Automatic Identification System (AIS)?. https://oceanservice.noaa.gov/facts/ais.html

6. Radio Technical Commission for Maritime Services (RTCM). (2023). GNSS Integrity and Resilience for Maritime Navigation. https://www.rtcm.org/

7. The Royal Institute of Navigation (RIN). (2022). The Human Element in Integrated Navigation Systems. https://www.rin.org.uk/publications
